VEVOR Heat Exchanger, 5"x 12" 100 Plates Brazed Plate Heat Exchanger, Copper/316L Stainless Steel

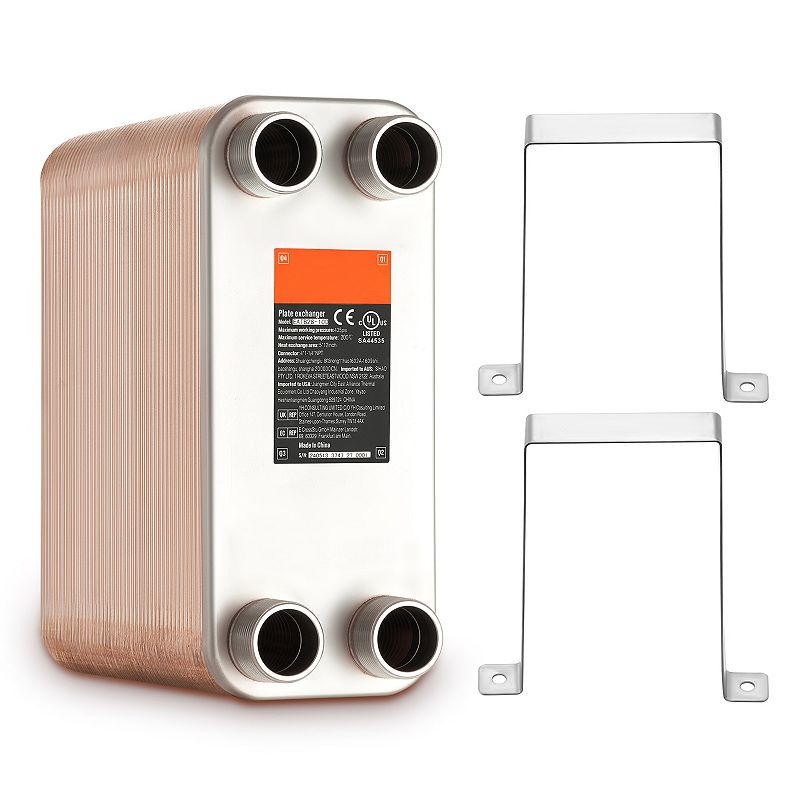

This heat exchanger is constructed from 316L stainless steel with 99% copper brazing at key contact points, ensuring a strong, leak-resistant unit that can withstand high pressure and temperature, and is CE certified for reliability. Its asymmetrical herringbone plate design creates intense turbulence for highly efficient heat transfer, achieving up to 99% efficiency with an output of 1100–1260K BTU/h while reducing energy and pump costs. Featuring a large heat exchange area with 5×12 plates and up to 100 plates, it delivers excellent performance across a wide temperature range from -292℉ to 392℉. Advanced vacuum brazing and helium leak testing ensure long-term durability and zero leakage, while included 304 stainless steel mounting brackets provide stable, rust-resistant installation.

PRODUCT FEATURES

• High-Quality Materials: Made of 316L stainless steel with 99% copper brazing at edges and contact points, forming a robust and leak-resistant unit that withstands high pressure and temperature. CE certified for reliable quality.
• Efficient Heat Transfer: The high-conductivity stainless steel plates feature an asymmetrical herringbone pattern, creating intense pressure turbulence for efficient heating/cooling.
• Large Heat Exchange Area: The heat exchanger features 5”x12” plates with up to 100 plates, providing excellent heat transfer performance for maximum efficiency. Suitable for operating temperatures from -292℉ to 392℉.
• Tight and Leak-Proof: To eliminate the possibility of micro-leaks, the heat exchanger uses high-pressure vacuum brazing and undergoes helium leak testing, ensuring long life and high reliability.
• Color: Stainless Steel + Copper Color
• Material: 304/316 Stainless Steel, Solder: 99.9% Copper Brazing
• Net Weight (with Accessories): 33.51lb / 15.2kg
• Product Dimensions (L x W x H): 11.85x4.96x9.69in / 301x126x246 mm
• 304/316 Stainless Steel,99.9% Copper Brazing
• Wipe Clean
• Imported
